SpecialTouch 65 Inch Infrared Touch Screen Frame - 20 Points Multi-Touch Overlay for Interactive LCD Monitors, TVs, Digital Signage & Whiteboards | Perfect for Classrooms, Meetings & Retail Displays

SPECIFICATION Standard Size: 65 inch Ratio: 16:9 Number of Touch Points: 20 Minimum Touch Object: 2mm Touch Activation Force: No minimum touch pressure required Touch Durability: Unlimited Durability Resolution: 32768*32768 Linearity Deviation: ±1mm Frames per Second: Up to 450 fps Typical Response Time: 3-10ms Light Transmission: 100% without glass Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac (Does not support Smart TV Android system, Raspberry Pi) Protocols: HID,TUIO,Flash Re-development Provide: free SDK, support C/C++, C#, Java etc. Noise : No Noises Lift Time : 7 -10 years ELECTRICAL Power Supply: Single USB Connection Low Power Consumption: Operating ≤2W, Stand By ≤ 250mW ESD: Contact Discharge 8kV,Air Discharge 15kV,15kV on USB connector pins ENVIRONMENT Operating Temperature: -20°C~70°C Storage Temperature: -40°C~85°C Operating Humidity: 10%~90%RH(Non-condensing) Storage Humidity: 10%~90%RH Certification: FCC,CE,RoHS Warranty: 1 year Note : If there is any other question , please feel free to contact us !

HIGH-QUALITY MATERIAL The frame of the interactive infrared touch screen adopts aluminum alloy black frame, which has a long service life. USB plug and play, intelligent automatic calibration, drive-free and maintenance-free. Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.Fast response (≤10ms)

LIGHT-RESISTANT DESIGN The IR touch frame can be applied to internal and external link environments, and is widely used in touch screen displays, touch all-in-one machines, touch kiosks, touch digital signage, and touch whiteboards. Application areas include games, education, conferences, exhibitions, advertising and other interactive applications.

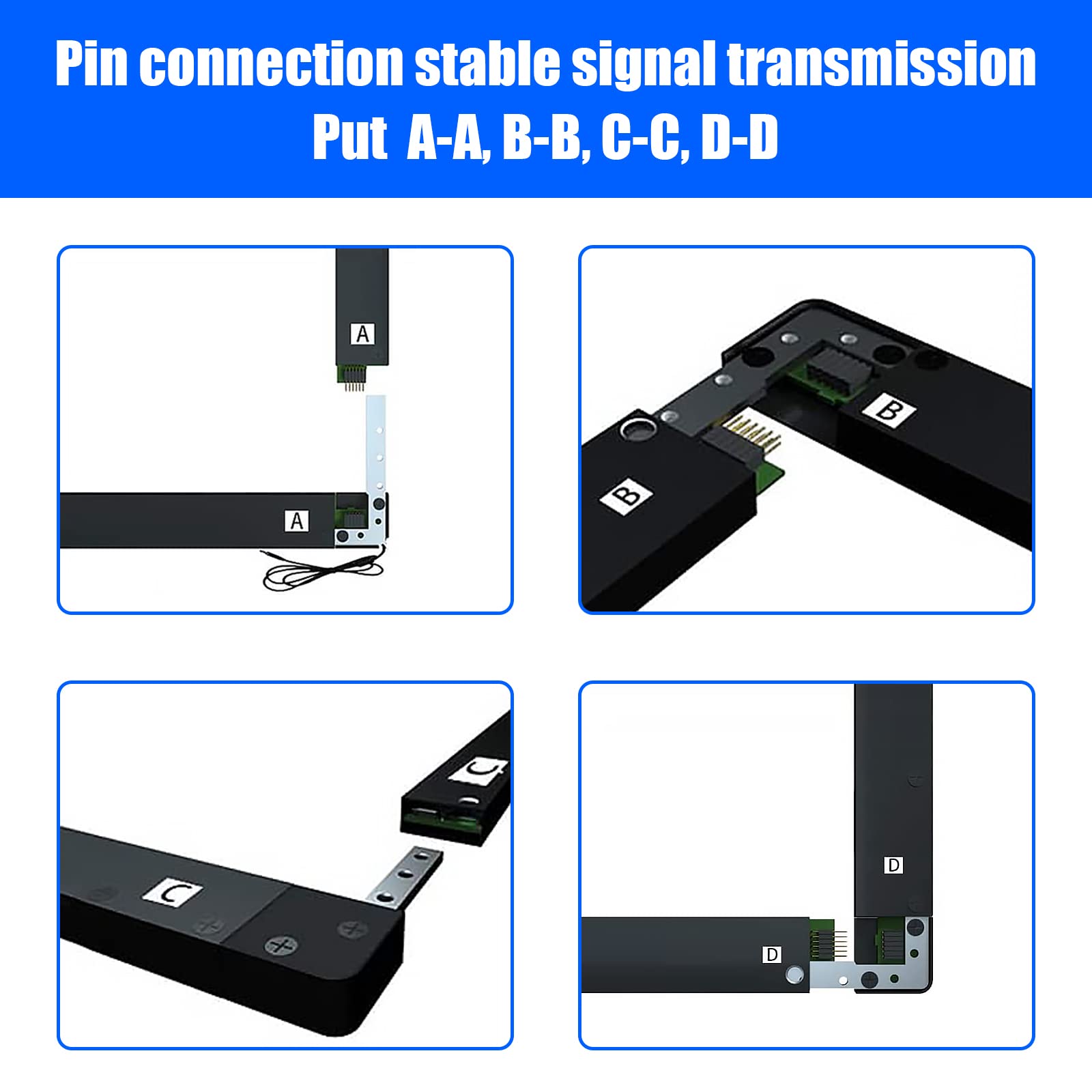

EASY TO INSTALL Our ir touch screen overlay is a plug-in design, the installation work is very simple and easy. You can read the installation pictures and you will do well.If the touch positioning is not accurate after installation, we can provide the calibration software.

SCOPE OF APPLICATION HID plug & play driver free for Windonws,Native Android and Native Linux. Need to install the HID driver in Mac OS. (Noticed：Not Support Smart TV）

PACKING Touch frame only (without monitor , without glass)Warranty is 1 year.If there is any other question , please feel free to contact us !
